Basic Info.
| Model NO. | MXL |
| Material | PU/Rubber |
| Feature | Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant |
| Structure (for Chain) | Roller Chain |
| Usage | Transmission Chain, Transpor |
| Color | White/Black/Other |
| OEM | Acceptable |
| Shipping Way | DHL,TNT,UPS,EMS,FedEx |
| Trademark | JBOSUN |
| Specification | SGS, ROHS |
| Origin | Shenzhen China |
| HS Code | 84839000 |

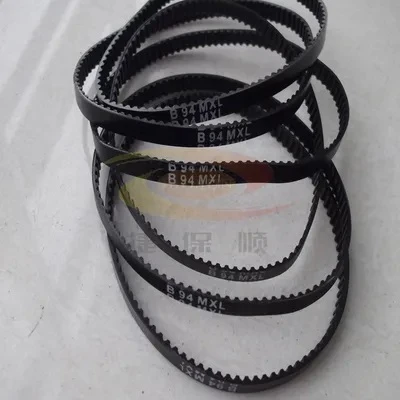

Product Description
Raw materials used for Industrial timing belt: Imported high quality synthetic neoprene as the main raw material, with many different uses of auxiliary materials; Skeleton material is high quality glass fiber cord imported from Japan; And using nylon 66 high stretch on tooth surface for protection. With dynamic bend resistance, fatigue performance is good, and anti- aging, heat resistant, oil resistant, wear resistance etc.
We offer:
1. Model: MXL, XL, L, H, XH, XXH, T2.5, T5, T10, T20, AT5, AT10, AT20, HTD2M, 3M, 5M, 8M, 14M, STD2M, S3M, S5M, S8M, S14M, RPP5M, RPP8M, RPP14M
2. Material: Polyurethane, neoprene, nylon
3. Brand Name: Jbosun
4. Place of Origin: Shenzhen China (Mainland)
5. Packaging Detail: Export Carton
6. Delivery Detail: About 7 Days after receiving 30% T/T payment in advance
Mechanical Properties
2. Low preliminary tension
3. Low noise
4. High resistance to wear
6, Excellent elasticity
7, Highest linear speed can be 80m/s
8, High precision of linear positioning
Chemical Properties
1. Anti-aging, waterproof solution, prevent UVA, prevent ozone,
2. Working temperature: -30+80, can withstand highest 110 degree within short time
3. Highly prevent oil & grease
4. Resistance to most acid, alkali corrosion
Application
Used in Textile, Printing and Chemical Machine and Medical Equipment, etc.
Wide range of molds and complete models for your option. OEM is offered.
Any inquiry, please feel free to contact us for more details, we'll response you ASAP!
| Timing Belt | ||||
| Type | Pitch | Tooth height | Belt thickness | |
| pb(mm) | ht(mm) | hs(mm) | ||
| T-type | MXL | 2.032 | 0.51 | 1.14 |
| XL | 5.08 | 1.27 | 2.3 | |
| XXL | 3.175 | 0.76 | 1.52 | |
| L | 9.525 | 1.91 | 3.6 | |
| H | 12.7 | 2.29 | 4.3 | |
| XH | 22.225 | 6.35 | 11.2 | |
| XXH | 31.75 | 9.53 | 15.7 | |
| T2.5 | 2.5 | 0.7 | 1.3 | |
| T5 | 5 | 1.2 | 2.2 | |
| T10 | 10 | 2.5 | 4.5 | |
| T20 | 20 | 5 | 8 | |
| AT5 | 5 | 1.2 | 2.7 | |
| AT10 | 10 | 2.5 | 5 | |
| AT20 | 20 | 5 | 8 | |
| Arc toothHTD | 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.22 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6 | |
| 14M | 14 | 6.02 | 10 | |
| 20M | 20 | 8.4 | 13.2 | |
| Arc tooth STD | S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.2 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
| Arc tooth RPP | RPP3M | 3 | 1.15 | 1.9 |
| RPP5M | 5 | 1.95 | 3.5 | |
| RPP8M | 8 | 3.2 | 5.5 | |
| RPP14M | 14 | 6 | 10 | |
