Basic Info.
| Model NO. | MXL 2M S2M 3M S3M 2GT 3GT |
| Material | Rubber |
| Inside Material | Glass Fiber |
| Feature | Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant |
| Tensile Strength | Strong |
| Trademark | JBOSUN |
| Transport Package | Carton, Wooden |
| Specification | SGS, ROHS |
| Origin | Shenzhen China |
| HS Code | 84839000 |
Product Description

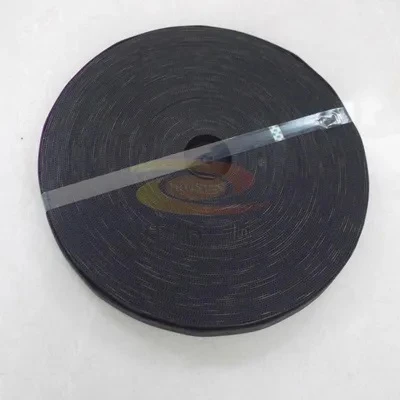

Products name: Rubber Timing Belts
Material: Rubber
Main type: MXL, XL, L, H, XH, XXH, T2.5, T5, T10, T20, AT5, AT10, AT20, HTD2M, 3M, 5M, 8M, 14M, STD2M, S3M, S5M, S8M, S14M, RPP3M, RPP5M, RPP8M, RPP14M
Brand name: Jbosun
Place of origin: Shenzhen, China (mainland)
Packing method: Export Carton
Delivery Detail: About 7 days after receiving 30% T/T payment in advance.
Minimum Order Quantity: 2pcs
Feature
2. Steady transmission
4. Long life
Rubber Timing belt with high transmission power and efficiency, anti-heat, hit, and oil, low noise, anti-chemical corrode.
Widely used in automobiles, and machinery equipment for auto, sewing, spinning, food processing, household appliances, printing machines, communication equipment, chemical machines, and various precision machine tools and instruments
Rubber Timing belt drive consists of an endless belt whose inner surface has equally spaced teeth and of wheels which have the corresponding teeth and is a kind of new type belt drive which has synthesized all the good points of belt drive, chain drive, and gear drive while working, the teeth of the belt and the pulleys of the gear joggle each other to transmit the motion and the dynamic force.
Rubber Timing belt drive has such features as exact transmission ratio, non-sliding, constant velocity ratio, even motion, absorption of vibration, little noise, the big range of transmission ratio which can normally reach 1: 10, and the linear velocity can reach 80m/s. The high transmission efficiency normally reaches 0.98, compaction structure, the suitability to multi-axis transmission, no need of lubrication, no pollution and so on. Therefore, the product can normally work well in the places where no pollution is allowed and where the working condition is worse and can widely be used in machinery drives, such industry as automobiles, machine tools, textile, chemical engineering, light industry, mining, instruments, oil industry and so on as well as all kinds of other machinery drives.
Any question or need, please kindly contact us. Will reply ASAP!
| Timing Belt | ||||
| Type | Pitch | Tooth height | Belt thickness | |
| pb(mm) | ht(mm) | hs(mm) | ||
| T-type | MXL | 2.032 | 0.51 | 1.14 |
| XL | 5.08 | 1.27 | 2.3 | |
| XXL | 3.175 | 0.76 | 1.52 | |
| L | 9.525 | 1.91 | 3.6 | |
| H | 12.7 | 2.29 | 4.3 | |
| XH | 22.225 | 6.35 | 11.2 | |
| XXH | 31.75 | 9.53 | 15.7 | |
| T2.5 | 2.5 | 0.7 | 1.3 | |
| T5 | 5 | 1.2 | 2.2 | |
| T10 | 10 | 2.5 | 4.5 | |
| T20 | 20 | 5 | 8 | |
| AT5 | 5 | 1.2 | 2.7 | |
| AT10 | 10 | 2.5 | 5 | |
| AT20 | 20 | 5 | 8 | |
| Arc toothHTD | 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.22 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6 | |
| 14M | 14 | 6.02 | 10 | |
| 20M | 20 | 8.4 | 13.2 | |
| Arc tooth STD | S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.2 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
| Arc tooth RPP | RPP3M | 3 | 1.15 | 1.9 |
| RPP5M | 5 | 1.95 | 3.5 | |
| RPP8M | 8 | 3.2 | 5.5 | |
| RPP14M | 14 | 6 | 10 | |
