Basic Info.
| Model NO. | XH-560 |
| Material | Rubber |
| Inside Material | Glass Fiber |
| Feature | Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant |
| Tensile Strength | Strong |
| Structure (for Chain) | Roller Chain |
| Usage | Transmission Chain, Transportation Chain, Dedica |
| Color | Black |
| Trademark | JBOSUN |
| Transport Package | Carton, Wooden |
| Specification | SGS, ROHS |
| Origin | Shenzhen China |
| HS Code | 84839000 |
Product Description

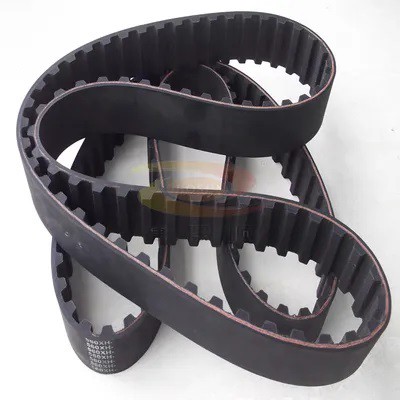

XH rubber timing belt is a high-performance transmission component designed for heavy-load, high-torque industrial scenarios. It adopts XH trapezoidal tooth type (tooth pitch 12.7mm), combined with high-strength rubber and composite reinforcement materials, and has both precise transmission and ultra-long life. It is suitable for power transmission needs under harsh working conditions, such as automated production lines, heavy machinery and the automotive industry, ensuring stable operation of equipment and reducing maintenance frequency.
1. Model: MXL, XL, L, H, XH, XXH, T2.5, T5, T10, T20, AT5, AT10, AT20, HTD2M, 3M, 5M, 8M, 14M, STD2M, S3M, S5M, S8M, S14M, RPP3M, RPP5M, RPP8M, RPP14M
2. Material: Rubber; Glass fiber wire
3. Brand Name: Jbosun
4. Place of Origin: Shenzhen China (Mainland)
5. Packaging Detail: Export Carton
6. Delivery Detail: About 7-14 Days after receiving 30% T/T payment in advance
7. Application:
Used in Textile, Printing and Chemical Machine and Medical Equipment, etc.
OEM is offered. And your design is also welcomed.
| Arc Tooth Type | Pitch Pb(mm) |
Tooth height ht(mm) |
Belt thickness hs(mm) |
Width (mm) |
| 2M | 2 | 0.75 | 1.36 | 6 |
| 3M | 3 | 1.17 | 2.4 | 6 |
| 5M | 5 | 2.06 | 3.8 | 9/15 |
| 8M | 8 | 3.36 | 6.00 | 20 |
| 14M | 14 | 6.02 | 10.00 | 40 |
| 20M | 20 | 8.4 | 13.20 | 115/170/230 |
| S2M | 2 | 0.76 | 1.36 | 9 |
| S3M | 3 | 1.14 | 2.20 | 9 |
| S4.5M | 4.5 | 1.71 | 2.81 | 9/15/20/25/30 |
| S5M | 5 | 1.91 | 3.4 | 20/25/30 |
| S8M | 8 | 3.05 | 5.3 | 30/50 |
| S14M | 14 | 5.3 | 10.2 | 55 |
| RP2M | 2 | 0.76 | 1.36 | 10/15/20 |
| RP3M | 3 | 1.15 | 1.9 | 15 |
| RP5M | 5 | 1.95 | 3.5 | details |
| RP8M | 8 | 3.2 | 5.5 | 50/85 |
| RP14M | 14 | 6.00 | 10 | 85/115/175 |
Core Advantages
1. Heavy-load high-torque transmission, with a tooth pitch of 12.7mm, a tooth height of 6.35mm, a large tooth top width, and a 20% increase in meshing area, it can carry higher torque (up to 500N·m), suitable for heavy equipment such as mining machinery and injection molding machines.
2. Multi-layer composite structure: The surface layer is made of wear-resistant chloroprene rubber (CR), and the middle layer is embedded with a high-strength steel wire rope core, with a tensile strength of ≥50MPa, excellent impact resistance and fatigue resistance, and a service life of more than 2 times that of ordinary rubber belts.
Resistant to extreme environments: oil-resistant, ozone-resistant, and high-temperature-resistant (-40℃ to +110℃), short-term peak temperature resistance of 130℃, suitable for high-temperature scenes such as metallurgy and casting.
3. Rubber shock-absorbing layer: Reduce operating vibration and noise (<65dB), reduce equipment wear, and is suitable for precision machine tools and laboratory instruments.
Anti-deviation reinforcement: The edge of the belt is thickened to maintain lateral stability during high-speed operation and avoid deviation and falling off.
