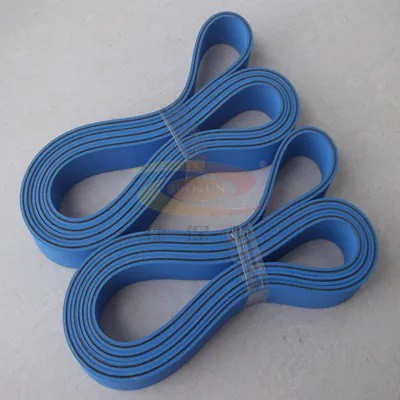

Basic Info.
| Model NO. | flat belt |
| Material | PU/Rubber |
| Inside Material | Nylon |
| Feature | Oil-Resistant, Acid And Alkali Resistant, Tear-Resistant, Heat-Resistant, Cold-Resistant, Wear-Resistant |
| Structure (for Chain) | Roller Chain |
| Usage | Transmission Chain, Transportation Chain, Dedica |
| Color | White/Black/Other |
| OEM | Acceptable |
| Trademark | JBOSUN |
| Specification | SGS, ROHS |
| Origin | Shenzhen China |
| HS Code | 84839000 |
Mechanical Properties
1. Dimension stability
2. Low preliminary tension
3. Low noise
4. High resistance to wear
2. Low preliminary tension
3. Low noise
4. High resistance to wear
5. Free from maintain
6, Excellent elasticity
7, Highest linear speed can be 80m/s
8, High precision of linear positioning
6, Excellent elasticity
7, Highest linear speed can be 80m/s
8, High precision of linear positioning
Chemical Properties
1. Anti-aging, waterproof solution, prevent UVA, prevent ozone,
2. Working temperature: -30+80, can withstand highest 110 degree within short time
3. Highly prevent oil & grease
4. Resistance to most acid, alkali corrosion
Application
Used in Textile, Printing and Chemical Machine and Medical Equipment, etc.
Wide range of molds and complete models for your option. OEM is offered.
Any inquiry, please feel free to contact us for more details, we'll response you ASAP!
| Timing Belt | ||||
| Type | Pitch | Tooth height | Belt thickness | |
| pb(mm) | ht(mm) | hs(mm) | ||
| T-type | MXL | 2.032 | 0.51 | 1.14 |
| XL | 5.08 | 1.27 | 2.3 | |
| XXL | 3.175 | 0.76 | 1.52 | |
| L | 9.525 | 1.91 | 3.6 | |
| H | 12.7 | 2.29 | 4.3 | |
| XH | 22.225 | 6.35 | 11.2 | |
| XXH | 31.75 | 9.53 | 15.7 | |
| T2.5 | 2.5 | 0.7 | 1.3 | |
| T5 | 5 | 1.2 | 2.2 | |
| T10 | 10 | 2.5 | 4.5 | |
| T20 | 20 | 5 | 8 | |
| AT5 | 5 | 1.2 | 2.7 | |
| AT10 | 10 | 2.5 | 5 | |
| AT20 | 20 | 5 | 8 | |
| Arc toothHTD | 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.22 | 2.4 | |
| 5M | 5 | 2.06 | 3.8 | |
| 8M | 8 | 3.36 | 6 | |
| 14M | 14 | 6.02 | 10 | |
| 20M | 20 | 8.4 | 13.2 | |
| Arc tooth STD | S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.2 | |
| S5M | 5 | 1.91 | 3.4 | |
| S8M | 8 | 3.05 | 5.3 | |
| S14M | 14 | 5.3 | 10.2 | |
| Arc tooth RPP | RPP3M | 3 | 1.15 | 1.9 |
| RPP5M | 5 | 1.95 | 3.5 | |
| RPP8M | 8 | 3.2 | 5.5 | |
| RPP14M | 14 | 6 | 10 | |
